X5

Continuous 3D Printing

A breakthrough in 3D printing, designed from the ground up for low-volume manufacturing.

Welcome to Continuous 3D Printing

The X5 is a breakthrough in 3D printing, designed from the ground up for low-volume manufacturing.
Capable of automatically feeding up to 8 build plates onto its build platform and reloading during printing, it provides a continuous 3D printing experience.

Auto-Swapping Build Plate

Loading fresh print plates onto the build bed after the previous print job is complete.

Build Plate Vault

Housing twelve build plates
with one 3D Printer

Tiertime Print Queue

Multiple users to stack print jobs into a queue, accessible from the printer’s touchscreen and from software.

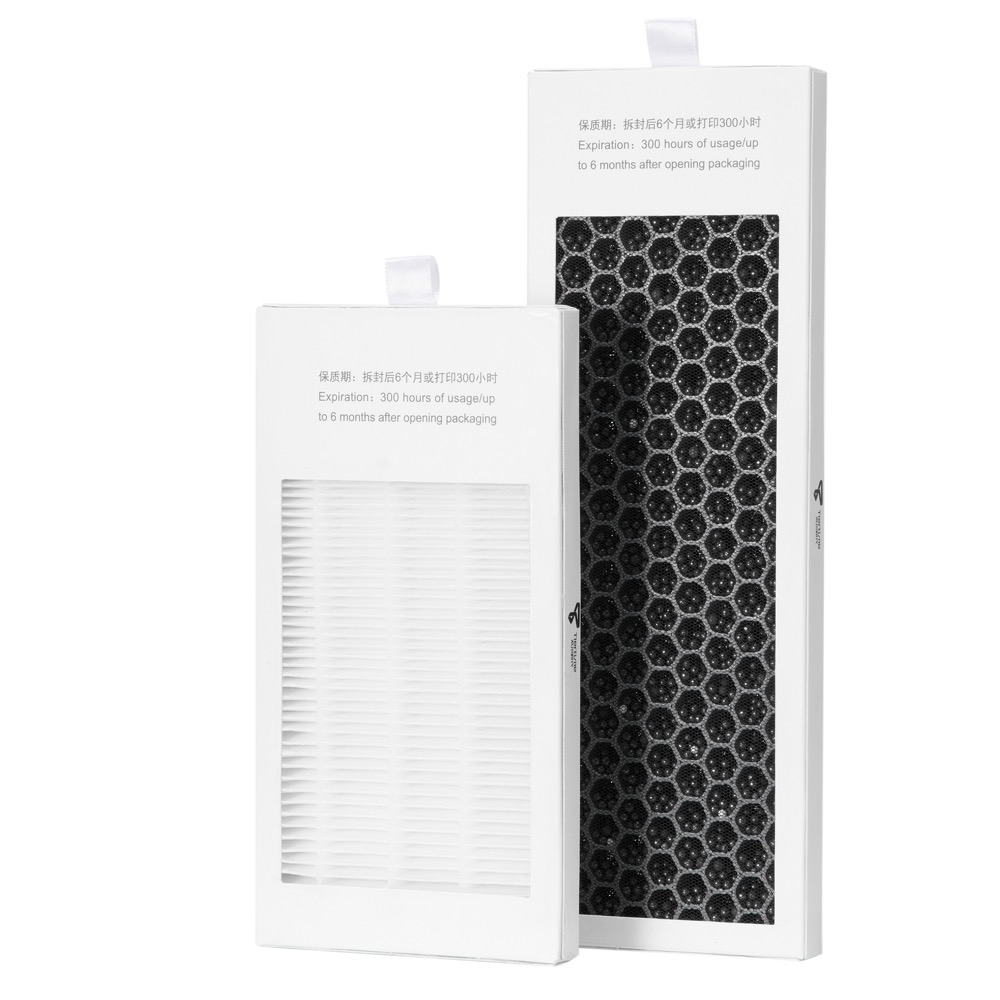

Dual Filtration System

HEPA and activated carbon filters
radically reducing toxic UFP and VOC emissions.

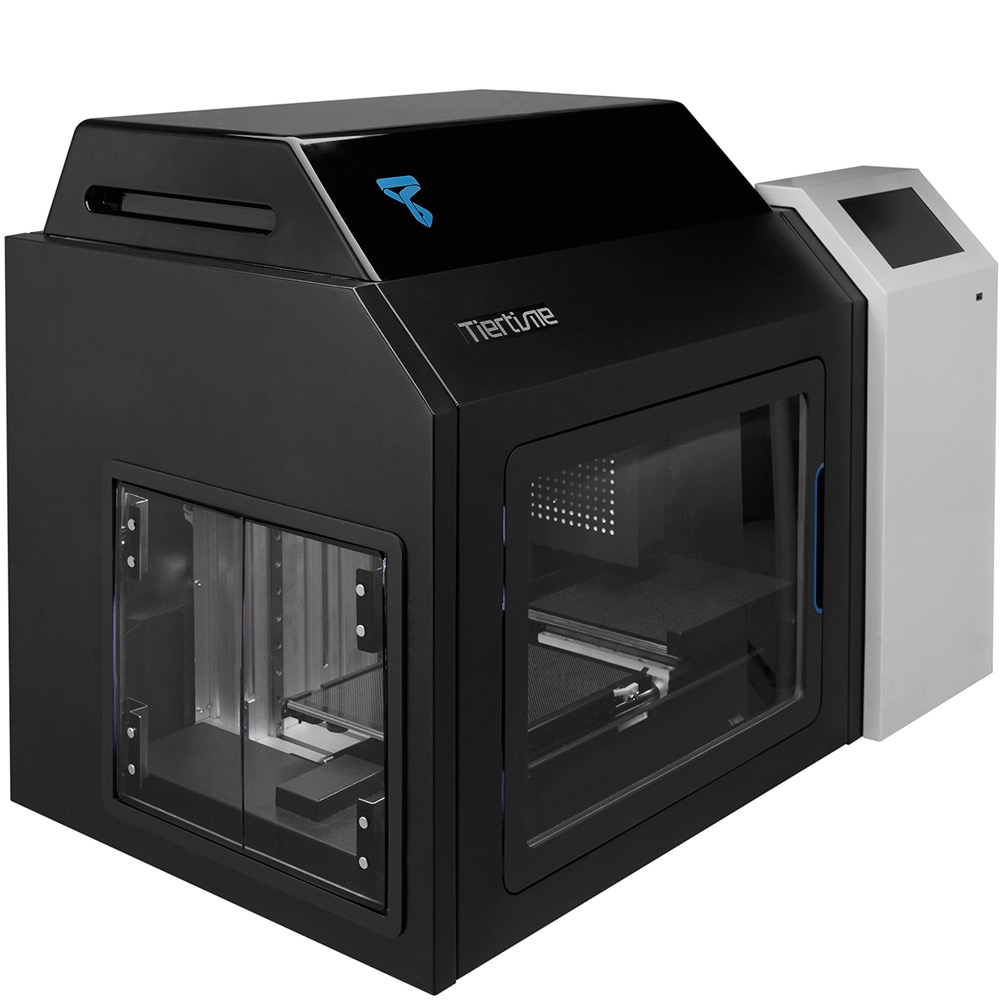

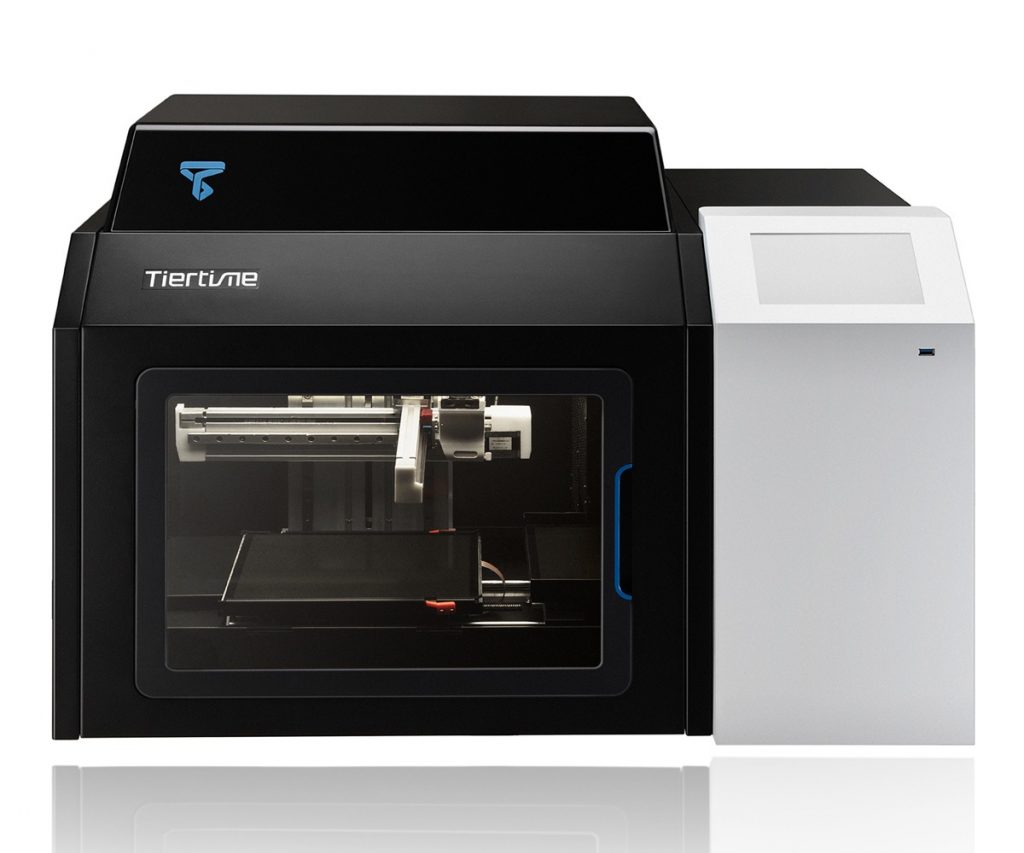

Tiertime X5
Eight Print Jobs – One 3D Printer

Auto-Swapping
Build Plate

automatically loading fresh build plates
onto the build platform after the previous print job is complete.

Dual Filtration System

HEPA and Activated Carbon Filters

Radically reducing toxic UFP and VOC emissions.

Specifications and Warranty

Printer

Printing Technology  MEM  (Melted Extrusion Modelling)
Extruder Single
Nozzle Diameter 0.2mm, 0.4mm, 0.6mm, and 0.5mm (TPU)
Extruder Maximum Temperature 299℃
Extruder Maximum Travel Speed 200 mm/sec
XYZ Accuracy 7, 7, 1.5 micron
Connectivity USB Cable, Wi-Fi, LAN and USB Drive
Display 7″ Full Colored LCD Touchscreen
Build Volume 180 × 230 × 200 mm (7″ x 9″ x7.8″)(XYZ)
Printed Object Accuracy ±0.1mm/100mm
Layer Resolution 0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4mm
Build Plate Maximum Temperature 100℃
Calibration and Levelling Manual Calibration and Leveling
Build Plate Surface Perforated, Heated
Pause to Change Filament Type Yes
Out of Filament Detection Yes
Filament UP Fila ABS,  ABS+,  PLA,  TPU and more
Filament Diameter 1.75mm
Filament Bay Capacity 500 – 2000g
Filament Holder Capacity 500 – 1000g
Compatible with 3rd Party Filament Yes

Software

Software UP Studio Version 2.5 or above
Supported OS Windows 7 (SP1) or higher (32 bit and 64 bit)
Mac OS 10.10
Hardware Requirements OpenGL 2.0
At least 4GB of RAM
Importable File Formats .up3, .ups, .tsk, .stl, .obj, .3mf, .ply, .off, .3ds
Preview Support Structures Yes
Editable Support Structures Yes

Physical Dimensions

Machine Dimensions 850 x 625 x 520 mm
(33.4″ x 24.6″ x 20.5″)
Net Weight 52kg
Shipping Box Dimensions
Shipping Box Weight 70kg

Power Requirements

Power Input 110-240VAC,50-60Hz,220W

One-Year Manufacturer’s Warranty

Rest easy knowing your investment is safe. Tiertime warranties all UP printers against manufacturing defects for a period of one year from the date of purchase.
