UP600

Large Format Powerhouse

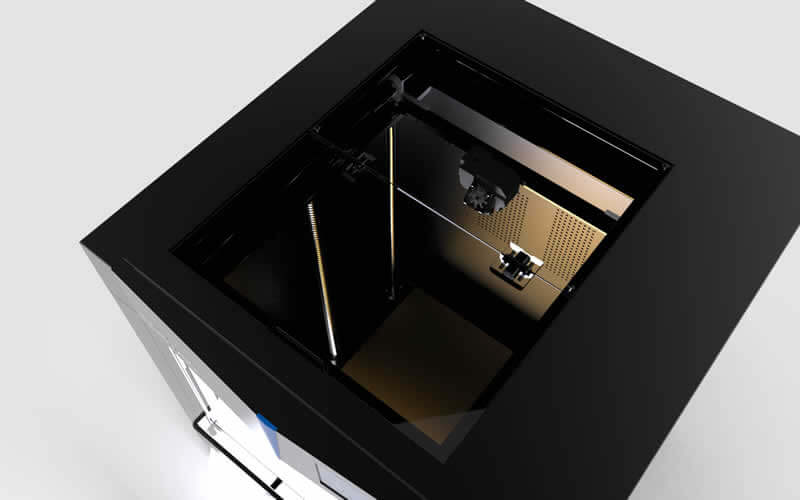

The UP600 industrial 3D printer is designed to tackle very large print jobs with the same ease and precision you have come to expect from other Tiertime printers. It can accurately produce sizable 3D printed parts at an industrial scale. Applications include: engineering, prototyping, short-run production, one-off fabrication, large scale-modeling, medical, R&D, education, prop manufacturing, architecture, and industrial tooling.

Large Format

At 400 x 500 x 600 mm, the UP600’s build volume is more than twice as large as that of the UP300. It is capable of printing objects 15.7 inches wide by 23.6 inches tall by 19.7 inches deep with a liquid volume of 120 liters or more than 31 US gallons.

Heated Build Chamber

Objects are printed inside a heated build chamber to minimize deformation caused by high temperature plastic cooling too quickly and absorbing naturally-occurring airborne moisture in the process.

Powerful Software Package

UP Studio 3.0 is a dedicated software package and state-of-the-art slicing engine developed for Tiertime machines. It supports both dual and single material printing and offers granular print parameter control at every possible level. Within a single print job, multiple models can be printed with different settings and each model can have designated sections with their own settings. Alternatively, operate in Basic mode for a plug ‘n play experience.

Adaptive Layer Thickness

The UP600 can increase print speed by printing smaller layers only where they are required to produce fine detail. Different layer height variation ranges can be applied on a per model or per section basis.

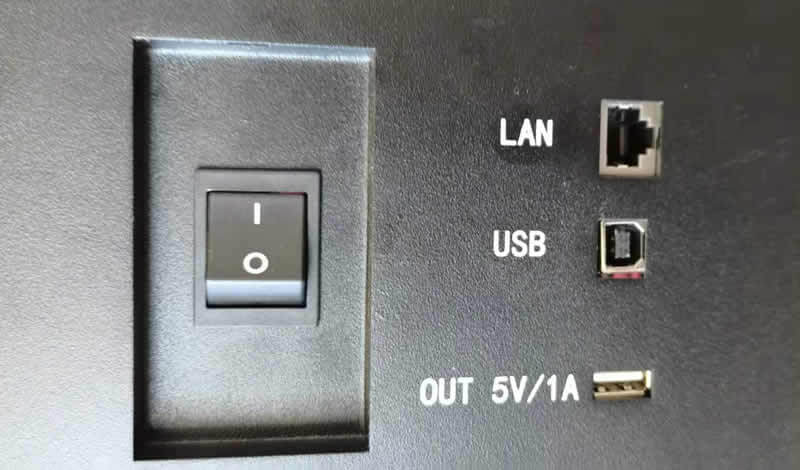

Connectivity

Connectivity options include Wi-Fi, Ethernet, USB cable, and USB memory stick. Multiple users on a network can send tasks to the printer, which can be monitored and managed via the Tiertime Print Queue.

Dual Air Filtration

The UP600 incorporates Tiertime’s two-stage HEPA and activated carbon air filtration system, providing maximum UFP and VOC reduction for a safe operating environment.

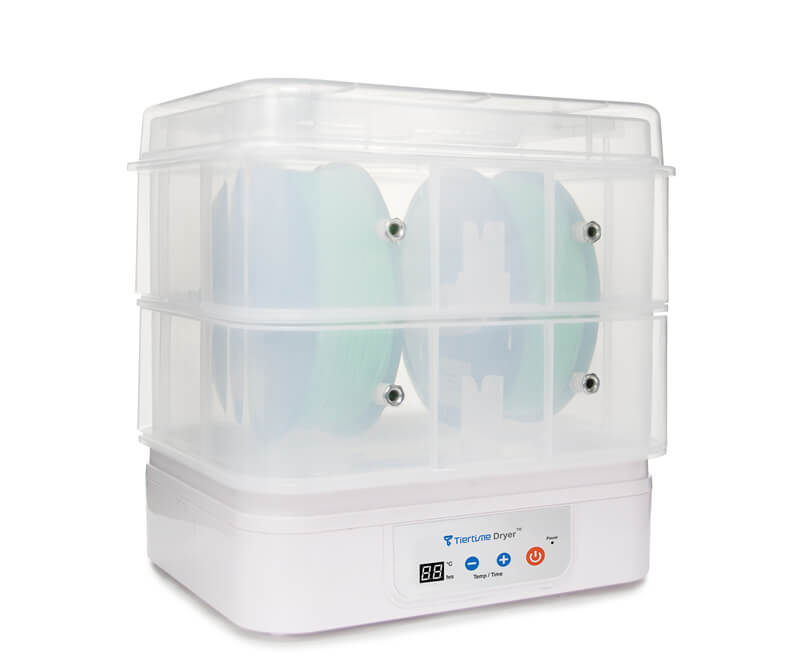

Optional Filament Dryer

The Tiertime Dryer helps maintain a pure material state by removing air-induced moisture from filament prior to 3D printing or sealed storage. It features a two-spool capacity, a 48-hour timer, and an adjustable temperature range from 35°C to 75°C.

Specifications and Warranty

Printer and Printing Properties Printing Technology MEM(Melting Extrusion Modeling)

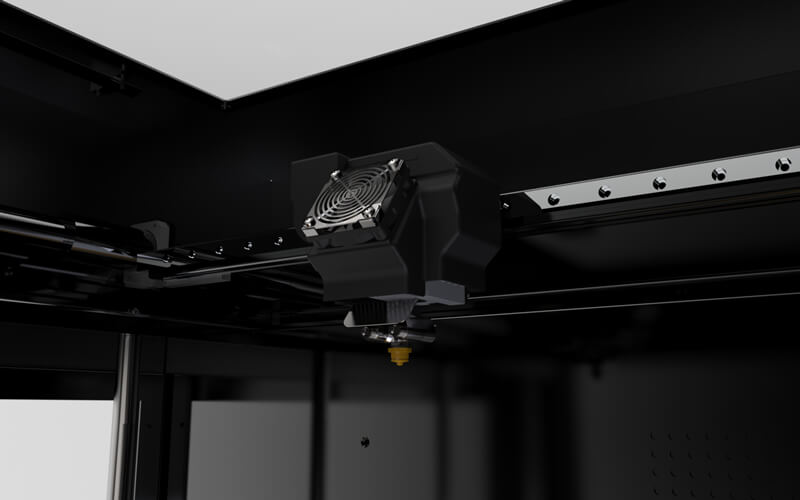

Print Head Single Extruder LT
Number of Print Heads One LT Single Extruder
Build Volume (XYZ) 500 x 400 x 600mm (19.7 x 15.7 x 23.6 in)
Layer Resolution (mm) 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.35 / 0.4 / User Defined
Nozzle Diameter 0.4mm (included) 0.5, 0.6, 0.8, 1.0mm (sold separately)
XYZ Resolution 7, 7, 1 micron
Dimension Accuracy ±0.1mm / 100mm
Build Plate Resilent Magnetic Composite Plate ( 20 – 80℃)
Extruder Temperature < 300℃
Extruder Travel Speed < 200mm/sec
Print Speed < 15.6mm^3/s
Power Input 100-240VAC 50-60Hz, 360W
Operating Ambient Temperatures 0-30℃, 0-40% RH
Printer Features Air Filtration System Dual Filtration: HEPA + Activated Carbon Filters
Connectivity USB, WIFI, Ethernet, USB Stick
Touchscreen 7inch (TFT-LCD), Linux System, 16G
Calibration and leveling Semi-Automatic
Safety Features Pause Printing When Front Door Opened
Blackout Recovery Yes
Heated Chamber Max 54℃, 1KW
Heated Filament Compartment < 50℃
Filament Runout Detection Yes
Slicing Software Supplied Software UP Studio 3.0
Miltilingual Support 10 Languages and growing
Supported OS Windows and MacOS
Software Features Preview Support Structures Yes
Editable Support Struetures Yes
Pause to Change Filament Type Yes
Tiertime Print Queue Yes
OTA Upgrade Yes
Compatible Materials Filament Diameter 1.75mm
Tiertime Filaments UP Fila ABS, ABS+, PLA, TPU and more
Third Party Filaments Yes with Predefined Profiles
Filament Spool Compatibility 2kg
Physical Properties Machine Fully Enclosed, Full Metal Frame
Dimensions 780 x 1150 x 850mm (W x H x D)
Net Weight 120KG
