Secure Wi-Fi

Connect to and control the BOX+ from any Wi-Fi enabled computer or mobile device running UP Studio or the UP Studio App. Add a printer-specific password for additional post-connection security to keep network hackers at bay.

Blackout Recovery

Should the BOX+ suffer a power loss, printing is paused and the point of interruption is remembered. Once power is re-established, printing can resume and the print job can continue as if nothing had happened.

UP Studio

Powerful, yet renowned for simplicity and usability
Smart-Support Technology
Both software-assisted calibration and automatic calibration
3D model error detection and correction
Customizable bed and nozzle temperature settings
Convert 2D images into 3D images
Access to Moshop
Compatible with Windows 7 SP1 or later, MacOS X
Importable file formats: .up3, .ups, .stl, .obj, .3mf, .ply, .off, .3ds, .gcode

UP Studio App

Easy-to-use interface
Model creation with basic building blocks via Puzzle Mode
Convert 2D images into 3D images
Access to Moshop
Printer access via Wi-Fi
Compatible with iOS 8.x or later
Importable file formats: .up3, .ups, .stl

DISTINCTIVE FEATURES

工业级性能

High Print Quality

High Print Quality

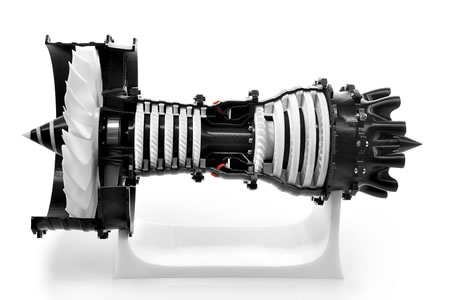

Accurate and stable, the BOX+ is capable of printing detailed prototypes and end-use parts with minimal layer line visibility in a variety of materials.

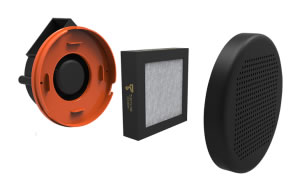

Recirculating HEPA Filtration with Activated Carbon

Tested by The Built Environment Research Group at the Illinois Institute of Technology, The BOX+’s internal air filter radically reduces UFP (ultrafine particle) and VOC (volatile organic compound) emissions during printing, recycling the build chamber’s air, over and over.

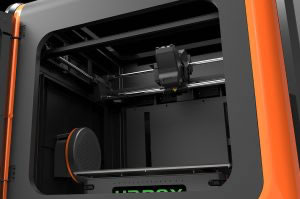

Full Enclosure

Warm air is retained within the build chamber, minimizing the risk of ABS warping while further reducing UFP and VOC environmental impact.

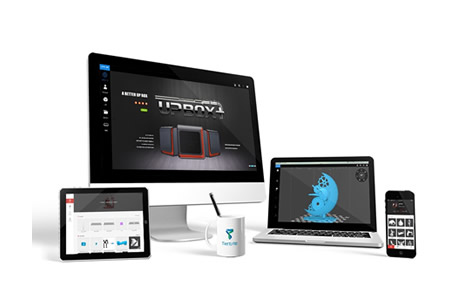

Powerful Software

Powerful Software
Take the headache out of printer settings. UP Studio and the UP Studio APP were created specifically for UP printers and allow you to take full advantage of their features. Set up prints, adjust smart-support creation, import a wide variety of file formats and perform standard maintenance tasks, all within an easy-to-use interface.

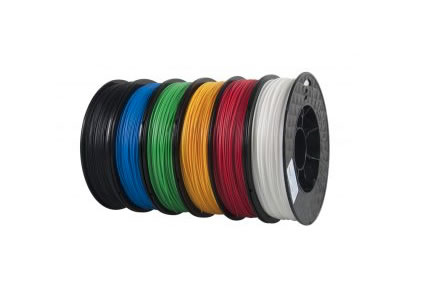

Advanced Materials Options

Advanced Materials Options
The BOX+ provides superior and safe ABS printing, but UP Studio’s ability to set custom nozzle and platform temperatures means you can print with a wide variety of filaments to suit your professional needs: ABS, PLA, PLA Composites, Polycarbonate, Bronze, Conductive, Nylon, Wood, ASA, PET, Flexible, Carbon Fiber and more.

Large Build Volume

Do you dream of huge, warp-free ABS printing? Are you tired of cutting your models into pieces and then printing each piece, hoping to put it back together during post-processing?

Live your dreams and stop trying to fix large jobs after the fact with the BOX+’s 255 × 205 × 205 mm build envelope.

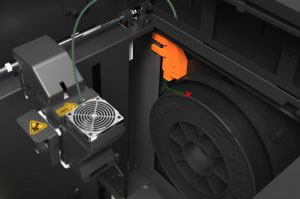

Empty Spool Detection

Stop print failures resulting from a miscalculation of the amount of filament remaining. The BOX+ knows you have run out of filament and will pause the print job until you can replace the spool.

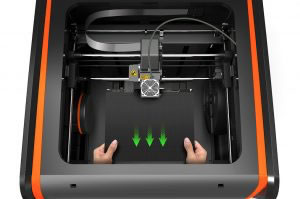

Interchangeable Print Surfaces

Choose the surface that fit yours needs and easily swap from one surface to another.

  • UP Perf – Maximum first layer adhesion
  • UP Flex – Medium first layer adhesion

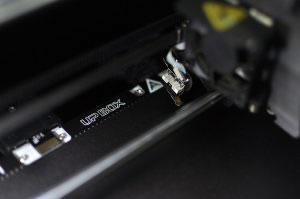

Automatic Platform Calibration

How much time do you spend leveling your current printer’s print bed? The BOX+’s electronic sensors and probes automatically detect nozzle height and bed level through a nine-point calibration sequence, allowing UP Studio to compensate for subtle variations in print surface height.

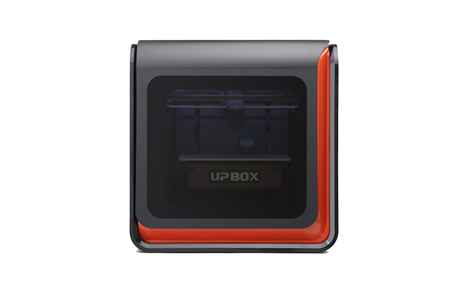

Uncompromising Performance

Drawing upon Tiertime’s industrial roots, the UP BOX+ is packed with luxuries not typically found in its price range. Its passively-heated enclosure can produce large ABS prints with minimal chance of warping. Its software and auto-leveling ensure you spend your time printing instead of adjusting your printer. Compare its build volume, full enclosure and air filtration to similarly priced machines and your choice will be clear.

One-Year Manufacturer’s Warranty

Rest easy knowing your investment is safe. Tiertime warranties all UP printers against manufacturing defects for a period of one year from the date of purchase.

Download Warranty

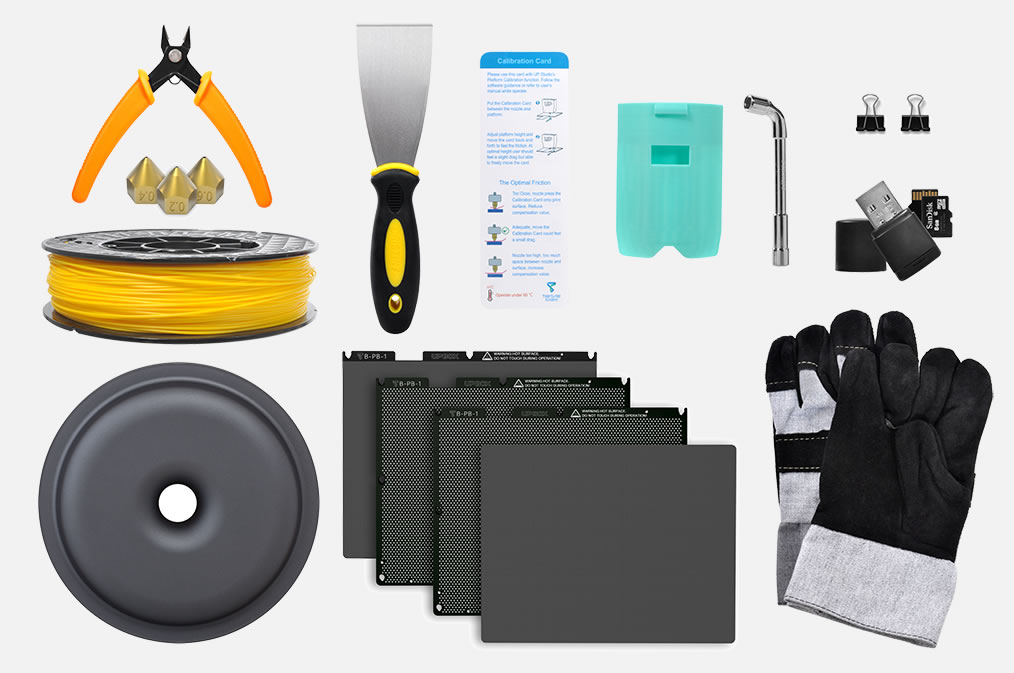

Included Accessories
  • 1 0.5 kg spool of UP Fila ABS
  • 1 Bed scraper
  • 1 Filament cutter
  • 1 Pair of heat-resistant gloves
  • 2 UP Perf Boards, 2 UP Flex Boards
  • 1 Micro SD card and reader
  • 2 0.4 mm nozzles
  • 1 Nozzle wrench
  • 1 Spool cover for 1 kg spools
  • 1 Spool rack for 1 kg spools
  • 2 Binder clips
  • 1 Calibration card

Specifications

Printing Technology MEM  (Melted Extrusion Modeling)
Build Volume 25.5 x 20.5 x 20.5 cm  (10″ x 8″ x 8″)
Build Chamber Passively Heated
Bed Calibration Automatic
Air Filtration HEPA with Activated Carbon
Print Surface UP Perf or UP Flex, Heated
Enclosure Full
Optimum Layer Resolution 100 microns
Print Resume on Power Interrupt Yes
Out of Filament Detection Yes
Custom Nozzle and Bed Temperature Control Yes
Filament Diameter 1.75 mm
Compatible Materials ABS, ABS+, PLA, PLA Composites, Conductive, Wood, Bronze, Flexible, Nylon, Polycarbonate, Carbon Fiber, PET, ASA and more.
Filament Spool Compatibility 500 g and 1000 g
Connectivity USB, Wi-Fi
Software UP Studio, UP Studio App
Software Compatibility Windows 7/8/10, Mac OS X, iOS 8.x/9.x
Machine Dimensions 49.3 × 51.7 × 49.3 cm  (19.5″ x 20.5″ x 19.5″)
Machine Weight 20 kg  (44.1 lb)
Warranty 1 Year
