MEET UP WITH THE

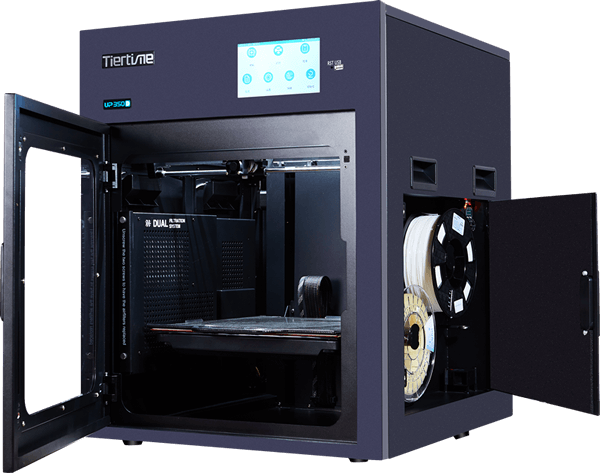

UP350/UP350D
The UP350 and UP350 Dual are the latest of Tiertime’s 3D printers designed with professionals in mind.It offers high precision and standard industrial volume.With a build chamber as big as 350 mm cube,the printer optimize temperatures of build chamber and filament compartment to achieve the best printing result.Not to mention its innovative bed leveling Mechanism.
Most Wanted Volume in Industrial Uses
350*350*350mm is the right build chamber dimension for industrial customers who need a large printing volume with limited workspace.
True Auto Calibration based on Load Balancing
The new bed leveling mechanism is based on the concept of load balancing. The calibration does not need human intervention, which is easy to operate and accurate as well.

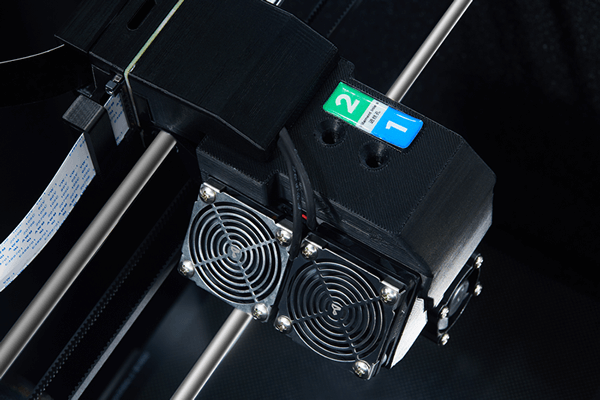

Extruder with Higher Temperature
UP350 comes with a high-temp (Max. 350C) extruder supporting more industrial filaments. UP 350D is also equipped with an optional high-temp convergence dual extruder which can print industrial filaments below 300C.
Filament-Clog Detection
When clogging happens, the ongoing printing job will be paused for the protection of the model and the extruder. Once the clogging is fixed, the print job will be resumed.
Smart Temperature Protection (STP)
The temperature in the build chamber is monitored in real time during printing. When it surpasses the preset temperature, the heater in the filament compartment, and the heater on the build plate will be adjusted by the STP to ensure the temperatures are optimal.
Specifications
-
Printing Technology MEM(Melted Extrusion Modeling)
-
Extruder Single & Support Convergence*
-
Nozzle Diameter 0.4 mm, 0.5mm, 0.6 mm
-
Extruder Max. Temperature U<300℃, HT<350℃
-
Extruder Max. Travel Speed < 200mm/sec
-
XYZ Accurency 7,7,1.5 micron
-
Connectivity USB, WI-FI, Ethernet and USB Stick
-
Touch Screen 7 inch (TFT-LCD) Linux System, 8G
-
Build Volume Single: 350 x 350 x 350 mm Dual: 335 x 335 x 350 mm*
-
Print Speed < 15.6 mm/s
-
Printed Object Accuracy ± 0.1 mm/100 mm
-
Calibration and Leveling True Touch 2.0, Automatic
-
Layer Resolution 0.1/0.15/0.2/0.25/0.3/ 0.35/0.4 mm/User Defined
-
Heated Magnetic Build Plate Flexible Steel Plate/UP Perf
-
Dual Filtration System HEPA + Activited Carbon Filters
-
Pause to Change Filament Type Yes
Software
Special Features
- Preview Support Structures
- Tiertime Print Queue
- Editable Support Structures
- Filament Runout Protection
- OTA Upgrade
