Classic Acclaim. Timeless Reliability.

UP Studio

Powerful, yet renowned for simplicity and usability
Smart-Support Technology
Both software-assisted calibration and automatic calibration
3D model error detection and correction
Customizable bed and nozzle temperature settings
Convert 2D images into 3D images
Compatible with Windows 7 SP1 or later, Mac OS X
Importable file formats: .up3, .ups, .stl, .obj, .3mf, .ply, .off, .3ds, .gcode

UP Studio App

Easy-to-use interface
Model creation with basic building blocks via Puzzle Mode
Convert 2D images into 3D images
Access to Moshop
Printer access via Wi-Fi
Compatible with iOS 8.x or later
Importable file formats: .up3, .ups, .stl

DISTINCTIVE FEATURES

High Print Quality

An original standard bearer in great 3D printing at an affordable price, the UP Plus 2 has been employed for prototyping and final product creation in a wide array of industries including aerospace, medical, dental, science, architecture, industrial and mechanical engineering, scale model creation and more.

Automatic Platform Calibration

A groundbreaking and time-saving feature, the UP Plus 2 was the first 3D printer in its class with an automatic platform calibration system. A probe’s sensor checks nine different points on the build surface for irregularities. If there is variation from one point to another, compensation settings are automatically entered into UP Studio.

Automatic Nozzle Height

Not only does the Plus 2 automatically calibrate platform level, it also automatically calibrates nozzle height. You don’t have to measure it yourself. The Plus 2’s electronic sensor will find it and enter it into UP Studio for you.

Powerful Software

Take the headache out of printer settings. UP Studio and the UP Studio APP were created specifically for UP printers and allow you to take full advantage of their features. Set up prints, adjust smart-support creation, import a wide variety of file formats and perform standard maintenance tasks, all within an easy-to-use interface.

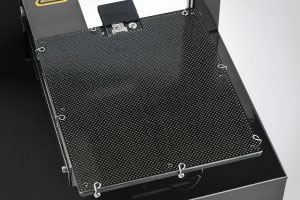

Snap-Up Platform Latching

Print job removal and print surface cleaning are easy with the UP Plus 2. Simply snap the platform latches to secure and remove the print surface. Starting a new print is as easy as switching surfaces. You can remove the model and clean the previous surface after starting your next print job.

Advanced Materials Options

Thanks to UP Studio’s custom nozzle and platform temperature control, the Plus 2 is capable of printing with a variety of filaments to match your purpose: ABS, PLA, PLA Composites, Polycarbonate, Bronze, Conductive, Nylon, Wood, ASA, PET, Flexible, Carbon Fiber and more.

Proven Reputation

One of the best-selling 3D printers ever made, the UP Plus 2 revolutionized the industry with automatic nozzle height and platform calibration – a feature still absent in most machines costing less than $3,000. Boasting awards for Innovation from DesignBUILD and Best-In-Class from Make Magazine and 3D Hubs, it remains a workhorse for many professionals who just want an easy-to-use printer that does its job.

One-Year Manufacturer’s Warranty

Rest easy knowing your investment is safe. Tiertime warranties all UP printers against manufacturing defects for a period of one year from the date of purchase.

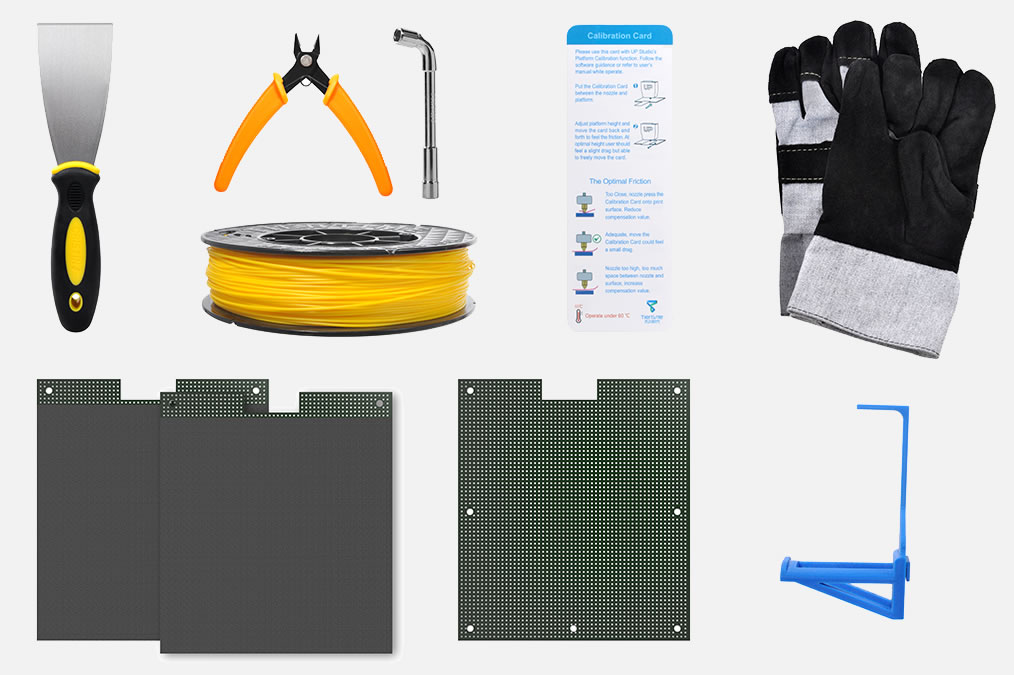

Included Accessories

1 0.5 kg spool of UP Fila ABS
1 Bed scraper
1 Filament cutter
1 Pair of heat-resistant gloves
2 UP Flex Boards, 1 UP Flex Board
1 Nozzle wrench

Specifications and Warranty

Printing Technology MEM  (Melted Extrusion Modeling)
Build Volume 140 x 140 x 135 mm (5.5″ x 5.5″ x 5.3″)
Bed Calibration Automatic Nozzle Height, Automatic Platform Calibration
Print Surface UP Perf, Heated
Optimum Layer Resolution 150 microns
Custom Nozzle and Bed Temperature Control Yes
Filament Diameter 1.75 mm
Compatible Materials ABS, ABS+, PLA, PLA Composites, Conductive, Wood, Bronze, Flexible, Nylon, Polycarbonate, Carbon Fiber, PET, ASA and more.
Filament Spool Compatibility 500 g, 700 g
Connectivity USB
Software UP Studio, UP Studio App
Software Compatibility Windows 7/8/10, Mac OS X, iOS 8.x/9.x
Machine Dimensions 245 × 350 × 260 mm (9.6″ x 13.8″ x 10.2″)
Machine Weight 5 KG (11 pounds)
Warranty 1 Year
