Superior Value. Exceptional Quality.

灵巧机身，不凡品质。

Secure Wi-Fi

Connect to and control the mini 2 from any Wi-Fi enabled computer or mobile device running UP Studio or the UP Studio App. Add a printer-specific password for additional post-connection security to keep network hackers at bay.

Blackout Recovery

Should the mini 2 suffer a power loss, printing is paused and the point of interruption is remembered. Once power is re-established, printing can resume and the print job can continue as if nothing had happened.

UP Studio

Powerful, yet renowned for simplicity and usability
Smart-Support Technology
Both software-assisted calibration and automatic calibration
3D model error detection and correction
Customizable bed and nozzle temperature settings
Convert 2D images into 3D images
Access to Moshop
Compatible with Windows 7 SP1 or later, MacOS X
Importable file formats: .up3, .ups, .stl, .obj, .3mf, .ply, .off, .3ds, .gcode

UP Studio App

Easy-to-use interface
Model creation with basic building blocks via Puzzle Mode
Convert 2D images into 3D images
Access to Moshop
Printer access via Wi-Fi
Compatible with iOS 8.x or later
Importable file formats: .up3, .ups, .stl

DISTINCTIVE FEATURES

独特性能

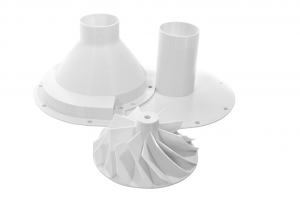

High Print Quality

High Print Quality
You can’t get better print quality in this price range. The mini 2 prints detailed prototypes and end-use parts with minimal layer line visibility. No other 3D printer costing less than $1500 can compete with the mini 2’s ABS printing.

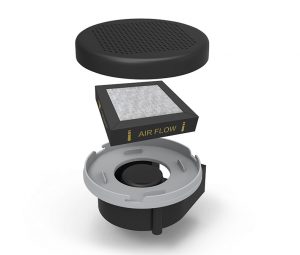

Recirculating HEPA Filtration with Activated Carbon

Crucial for educators, the mini 2’s internal air filter radically reduces UFP (ultrafine particle) and VOC (volatile organic compound) emissions. Be confident in a classroom environment knowing your students are safe.

Full Enclosure

Warm air is retained within the build chamber, minimizing the risk of ABS warping while further reducing UFP and VOC environmental impact. Access is easy thanks to front and back doors, plus a lift-off top.

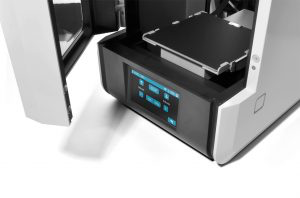

Touch Screen Control

An easy-to-use, 4” LCD panel puts control of your printer, configuration settings, and print progress monitoring right at your fingertips. The mini 2 is truly touch ‘n print.

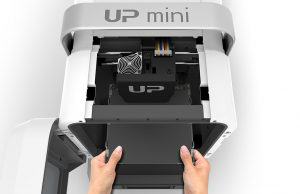

Interchangeable Print Surfaces

Choose the surface that fit yours needs and easily swap from one surface to another.

  • UP Perf – Maximum first layer adhesion
  • UP Flex – Medium first layer adhesion

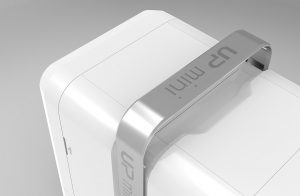

Portable

With an extendible, aluminum carrying handle and weighing just 20 pounds, transporting the mini 2 is as easy as it gets. At 15.2 by 10.2 inches, its footprint won’t eat all your workspace.

Advanced Materials Options

Advanced Materials Options
Thanks to UP Studio’s custom nozzle and platform temperature control, the mini 2 is capable of printing with a variety of filaments to match your needs: ABS, PLA, PLA Composites, Polycarbonate, Bronze, Conductive, Nylon, Wood, ASA, PET, Flexible, Carbon Fiber and more.

Powerful Software

Powerful Software
Take the headache out of printer settings. UP Studio and the UP Studio APP were created specifically for UP printers and allow you to take full advantage of their features. Set up prints, adjust smart-support creation, import a wide variety of file formats and perform standard maintenance tasks, all within an easy-to-use interface.

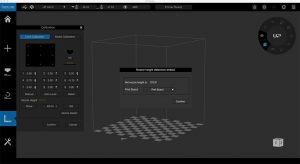

Automatic Nozzle Height Detection with Software-Assisted Calibration

Advanced Materials Options
Automatically set nozzle height from the touch screen or UP Studio and perform your nine-point bed calibration routine with the guidance of UP Studio, compensating for any variation in surface height from one point to another.
Small Package – Huge Value

Due to its safety, price, and performance, there is no better 3D printer for the education market, where the mini 2 is a best seller. The competition simply doesn’t stack up. A school board can purchase two UP mini 2s for less than one LulzBot Mini, MakerBot Replicator Mini+ or Ultimaker 2 Go. None of these competing 3D printers include air filtration and a full enclosure.

One-Year Manufacturer’s Warranty

Rest easy knowing your investment is safe. Tiertime warranties all UP printers against manufacturing defects for a period of one year from the date of purchase.

Download Warranty

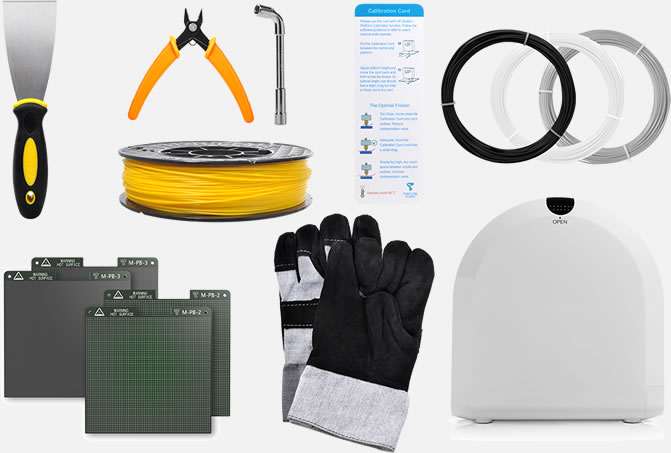

Included Accessories
  • 1 0.5 kg spool of UP Fila ABS
  • 1 UP Fila external spool holder
  • 1 Bed scraper
  • 1 Filament cutter
  • 1 Pair of heat-resistant gloves
  • 2 UP Perf Boards, 2 UP Flex Boards
  • 1 0.4 mm nozzle
  • 1 Nozzle wrench
  • 1 3 50 g sample filaments
  • 1 Calibration card

Specifications

Printing Technology MEM  (Melted Extrusion Modeling)
Build Volume 120 x 120 x 120 mm  (4.7” x 4.7” x 4.7”)
Build Chamber Passively Heated
Bed Calibration Automatic Nozzle Height, Software-Assisted
Air Filtration HEPA with Activated Carbon
Print Surface UP Perf or UP Flex, Heated
Enclosure Full
Optimum Layer Resolution 150 microns
Print Resume on Power Interrupt Yes
Touch Screen 4″ LCD
Custom Nozzle and Bed Temperature Control Yes
Filament Diameter 1.75 mm
Compatible Materials ABS, ABS+, PLA, PLA Composites, Conductive, Wood, Bronze, Flexible, Nylon, Polycarbonate, Carbon Fiber, PET, ASA and more.
Filament Spool Compatibility 500 g
Connectivity USB, Wi-Fi
Software UP Studio, UP Studio App
Software Compatibility Windows 7/8/10, Mac OS X, iOS 8.x/9.x
Machine Dimensions 255× 365 × 385 mm  (19.1″ x 20.5″ x 19.5″)
Machine Weight 8 kg (20.3 lb)
Warranty 1 Year

Warranty

One-Year Manufacturer’s Warranty

Rest easy knowing your investment is safe. Tiertime warranties all UP printers against manufacturing defects for a period of one year from the date of purchase.

Download Warranty
