3d printed Lithophanes

Post by amd-tec » Fri Sep 14, 2012 2:23 pm

Testing to print from photo to 3d.
Works quite nice! but upload attacment doesnt --->"Sorry, the board attachment quota has been reached."
So you have to wait photos.....
Last edited by amd-tec on Fri Nov 16, 2012 7:36 pm, edited 4 times in total.
"3D design with intelligent printing"
http://www.amd-tec.com

amd-tec
Posts: 286
Joined: Sun Apr 15, 2012 6:16 am
Contact:

Re: From photo to 3d print

Post by amd-tec » Fri Sep 14, 2012 7:06 pm

"Sorry, the board attachment quota has been reached."
Still not working!
"3D design with intelligent printing"
http://www.amd-tec.com

Marcus
Posts: 526
Joined: Thu Nov 04, 2010 9:58 pm
Location: Germany

Re: From photo to 3d print

Post by Marcus » Fri Sep 14, 2012 9:05 pm

Could you post the picture at picpaste, imageshack, flickr, or another image hoster?

User avatar
wilsonj
Posts: 569
Joined: Tue Feb 28, 2012 10:26 pm
Location: Australia

Re: From photo to 3d print

Post by wilsonj » Fri Sep 14, 2012 9:12 pm

Looks interesting. Although most models seem to be missing quite a bit, and its hard to see how much detail there is with the picture overlayed.

Seems the forum is back to its old tricks. Hopefully it gets a revamp like the UP website.

Look forward to seeing your prints.
Regards
Jamie
3DPrinterGear.com.au

amd-tec
Posts: 286
Joined: Sun Apr 15, 2012 6:16 am
Contact:

Re: From photo to 3d print

Post by amd-tec » Sat Sep 15, 2012 6:35 am

Marcus wrote:Could you post the picture at picpaste, imageshack, flickr, or another image hoster?
Here's link to some photos.
http://db.tt/P5QTjfoj
http://db.tt/YDF6eItQ
"3D design with intelligent printing"
http://www.amd-tec.com

User avatar
wilsonj
Posts: 569
Joined: Tue Feb 28, 2012 10:26 pm
Location: Australia

Re: From photo to 3d print

Post by wilsonj » Sat Sep 15, 2012 9:23 pm

Looks good. Could you please show the photos you used? And did you do any work to them?
Regards
Jamie
3DPrinterGear.com.au

User avatar
JuliaDee
Posts: 959
Joined: Sun May 06, 2012 10:00 pm
Location: Connecticut
Contact:

Re: From photo to 3d print

Post by JuliaDee » Sat Sep 15, 2012 10:38 pm

I like it - it reminds me of a "lithophane" and would make a nice nightlight, which is what lithophanes are commonly used for. Can you tell us how you got from a 2D photo to a 3D model? What software tool(s) did you use?

Thanks,
julia

pleppik
Posts: 336
Joined: Sun Dec 11, 2011 2:14 pm

Re: From photo to 3d print

Post by pleppik » Sun Sep 16, 2012 12:39 am

It would be fun to experiment with this as a lampshade printed with glow in the dark plastic. You might get some really interesting effects.

User avatar
wilsonj
Posts: 569
Joined: Tue Feb 28, 2012 10:26 pm
Location: Australia

Re: From photo to 3d print

Post by wilsonj » Sun Sep 16, 2012 8:49 pm

http://www.photo-to-3d.com/ is the program/website. But using their examples I get less than great outcomes. I'd been keen to hear what else was done.
Regards
Jamie
3DPrinterGear.com.au

amd-tec
Posts: 286
Joined: Sun Apr 15, 2012 6:16 am
Contact:

Re: From photo to 3d print

Post by amd-tec » Mon Sep 17, 2012 9:09 am

wilsonj wrote:http://www.photo-to-3d.com/ is the program/website. But using their examples I get less than great outcomes. I'd been keen to hear what else was done.
Hi



I used this software: http://www.ransen.com/PhotoToMesh/Default.htm,
Not bad prise for the value it gives!

Here is the original picture which I used for printing. I just converted it to grayscale.
https://www.dropbox.com/s/98l77i13xd25jpz/Photo.jpg
"3D design with intelligent printing"
http://www.amd-tec.com

User avatar
wilsonj
Posts: 569
Joined: Tue Feb 28, 2012 10:26 pm
Location: Australia

Re: From photo to 3d print

Post by wilsonj » Mon Sep 17, 2012 7:31 pm

Oops! Apologies. Thought it was photo to 3D from the OP.
Regards
Jamie
3DPrinterGear.com.au

amd-tec
Posts: 286
Joined: Sun Apr 15, 2012 6:16 am
Contact:

Re: From photo to 3d print

Post by amd-tec » Mon Sep 17, 2012 8:46 pm

wilsonj wrote:Oops! Apologies. Thought it was photo to 3D from the OP.
Hi, no problems.
I checked also out that photo-to-3d, but results wasn't
what I was looking for.
"3D design with intelligent printing"
http://www.amd-tec.com

eyUP
Posts: 230
Joined: Thu May 24, 2012 3:23 pm

Re: From photo to 3d print

Post by eyUP » Wed Sep 19, 2012 12:27 pm

I've also experimented with printing Lithophanes and found that you get excellent results when printed edge-down - you get far better definition than printing it flat on the table....I'll post photos when I can

amd-tec
Posts: 286
Joined: Sun Apr 15, 2012 6:16 am
Contact:

Re: From photo to 3d print

Post by amd-tec » Wed Sep 19, 2012 12:52 pm

Great,
yes please put some photos to forum.

Thanks,

(need obviously modify/change the subject !)
"3D design with intelligent printing"
http://www.amd-tec.com

User avatar
wilsonj
Posts: 569
Joined: Tue Feb 28, 2012 10:26 pm
Location: Australia

Re: Lithophanes (From photo to 3d print)

Post by wilsonj » Thu Sep 20, 2012 9:28 am

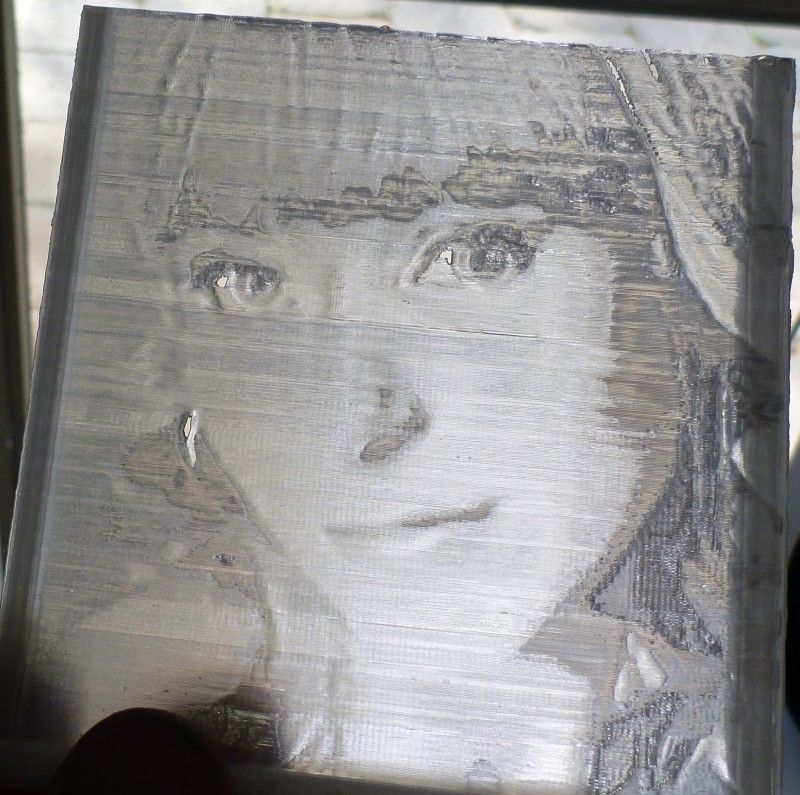

Here is one I did in crysta-line clear ABS. The photo doesn't do it justice. When held up to the light it has a satin sheen look.

The original.


First try.

I'm going to try again with some changes. I built small supports at the back along the edges to give it some strength. As it was printed vertical, and very thin.
Regards
Jamie
3DPrinterGear.com.au

amd-tec
Posts: 286
Joined: Sun Apr 15, 2012 6:16 am
Contact:

Re: Lithophanes (From photo to 3d print)

Post by amd-tec » Thu Sep 20, 2012 1:31 pm

Look nice!
What software did you use?
"3D design with intelligent printing"
http://www.amd-tec.com

User avatar
wilsonj
Posts: 569
Joined: Tue Feb 28, 2012 10:26 pm
Location: Australia

Re: Lithophanes (From photo to 3d print)

Post by wilsonj » Thu Sep 20, 2012 8:46 pm

Regards
Jamie
3DPrinterGear.com.au

User avatar
JuliaDee
Posts: 959
Joined: Sun May 06, 2012 10:00 pm
Location: Connecticut
Contact:

Re: Lithophanes (From photo to 3d print)

Post by JuliaDee » Thu Sep 20, 2012 11:38 pm

There is also this

http://www.thingiverse.com/thing:24639

for Macintosh.

eyUP
Posts: 230
Joined: Thu May 24, 2012 3:23 pm

Re: Lithophanes (From photo to 3d print)

Post by eyUP » Fri Sep 21, 2012 11:41 am

Here is a flat lithophane I printed edge-ways up:
The software to make both meshes is my own and something I'm tinkering with in-between 'real' work...I like the idea of wrapping lithophanes into a tubes/vases to use as lamp shades:

amd-tec
Posts: 286
Joined: Sun Apr 15, 2012 6:16 am
Contact:

Re: Lithophanes (From photo to 3d print)

Post by amd-tec » Fri Sep 21, 2012 11:53 am

"The software to make both meshes is my own and something I'm tinkering with in-between 'real' work...I like the idea of wrapping lithophanes into a tubes/vases to use as lamp shades:"

Need to study that wrapping a bit more what limits you have in wrapping?
"3D design with intelligent printing"
http://www.amd-tec.com
